Vol. 40 No. 1 (2026): AHS 150 years
Articles

Non-destructive detection and quantification of embryo presence in Acer monspessulanum seeds using neural networks

pdf
  • S. Karimpour,
  • M. Ahmadi Sarcheshme,
  • S. Karimpour
S. Karimpour
Department of Horticultural Science and Landscape Design, Shirvan Faculty of Agriculture, University of Bojnord, Bojnord, Iran.
M. Ahmadi Sarcheshme
Department of Horticultural Science and Landscape Design, Shirvan Faculty of Agriculture, University of Bojnord, Bojnord, Iran.
S. Karimpour
Instituto Politécnico Nacional, CIC, UPALM-Zacatenco, 07320 Mexico City, Mexico.
DOI: https://doi.org/10.36253/ahsc-18597
Categories

Published 2026-04-07

Keywords

  • Embryo detection,
  • Montpellier maple,
  • seed classification,
  • seed phenotyping,
  • stepwise regression

How to Cite

Karimpour, S., Ahmadi Sarcheshme, M., & Karimpour, S. (2026). Non-destructive detection and quantification of embryo presence in Acer monspessulanum seeds using neural networks. Advances in Horticultural Science, 40(1), 85–97. https://doi.org/10.36253/ahsc-18597

Copyright (c) 2025 Sajede Karimpour

Creative Commons License

This work is licensed under a Creative Commons Attribution 4.0 International License.

Crossref
Scopus
Google Scholar
Europe PMC

Abstract

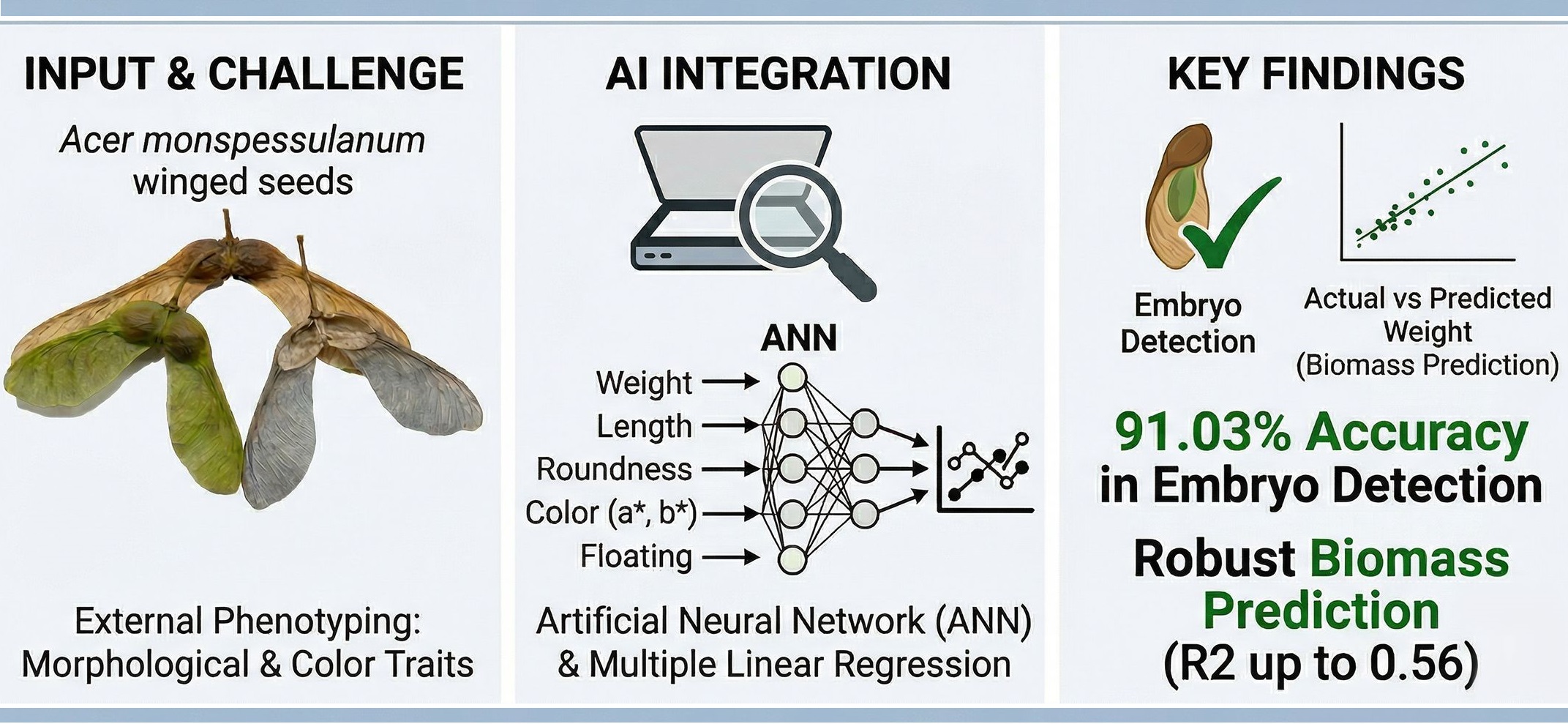

This study aimed to develop a non-destructive method for predicting embryo presence and quantifying embryo biomass in Acer monspessulanum seeds using morphological and physical traits, combined with machine learning and statistical modeling approaches. Seeds were divided into two groups based on the presence or absence of embryos, and 26 morphological and physical traits were measured. Welch’s t-tests were used to identify traits significantly differed between seeds with and without embryos. A feedforward neural network classifier was trained on these traits to predict embryo presence. Additionally, forward stepwise regression models were constructed to identify key predictors of embryo fresh weight, dry weight, and water content in embryo‐containingseeds. Statistically significant differences (p<0.05) were observed between embryo- containing and empty seeds in traits such as seed weight, length, roundness, Hue, and floating behavior. The neural network classifier achieved 91.03% accuracy, with strong precision (0.92) and recall (0.94) for identifying embryo‐containing seeds. Regression models explained up to 56% of the variation in embryo dry weight and 50% in fresh weight, with seed weight, color parameters, and floatation traits emerging as primary predictors. Embryo water content was primarily predicted by the b* seed coat color parameter (31.6% variance), with additional contributions from buoyancy, perimeter, and post- scarification color traits, yielding a model explaining 45.5% of total variation. The integration of seed phenotyping with neural networks and multiple linear analysis provides a robust, non-destructive method for classifying embryo‐containing seed and predicting embryo development in Acer monspessulanum. This approach offers valuable applications in reforestation, seed banking, and ecological restoration initiatives.

pdf

References

  1. ADAMS R.H., 2014 - Junipers of the world: the genus Juniperus, 4th edn. - Trafford Publishing, Bloomington, Indiana, USA, pp. 415.
  2. AGELET L.E., ELLIS D.D., DUVICK S., GOGGI A.S., HURBURGH C.R., GARDNER C.A., 2012 - Feasibility of near infrared spectroscopy for analyzing corn kernel damage and viability of soybean and corn kernels. - J. Cereal Sci., 55: 160-165.
  3. AHMED M.R., YASMIN J., COLLINS W., CHO B.K., 2018 - X-ray CT image analysis for morphology of muskmelon seed in relation to germination. - Biosyst. Eng., 175: 183-193.
  4. BASKIN C.C., BASKIN J.M., 2014 - Seeds. Ecology, biogeography, and evolution of dormancy and germination. 2nd Edition. Academic Press, London, UK, pp. 1600.
  5. BEWLEY J.D., BRADFORD K.J., HILHORST H.W.M., NONOGAKI H., 2013 - Seeds. Physiology of development, germination and dormancy. Third edition. - Springer, New York, USA, pp. 381.
  6. BOELT B., SHRESTHA S., SALIMI Z., JORGENSEN J.R., NICOLAISEN M., CARSTENSEN J.M. 2018 - Multispectral imaging - A new tool in seed quality assessment?. -Seed Sci. Res., 28: 222-228.
  7. BONNER F.T., 2008 - Storage of Seeds, pp. 85-95. - In: BONNER F.T., and R.P. KARRFALT (eds.) The woody plant seed manual. USDA Forest Service, Agriculture Handbook, 727, pp. 1223.
  8. DADLANI M., YADAVA D.K., 2023 - Seed science and technology: Biology, production, quality. - Springer Singapore, East Singapore, pp. 430.
  9. DANESHVAR A., TIGABU M., KARIMIDOOST A., ODÉNET P.C., 2017 - Flotation techniques to improve viability of Juniperus polycarpos seed lots. - J. For. Res., 28(2): 231-239.
  10. DE MEDEIROS A.D., PINHEIRO D.T., XAVIER W.A., DA SILVA L.J., DOS DIAS D.C.F., 2020 a - Quality classification of Jatropha curcas seeds using radiographic images and machine learning. - Ind. Crops Prod., 146: 112162.
  11. DE MEDEIROS A.D., SILVA L.J., RIBEIRO J.P.O., FERRIRA K.C., ROSAS J.T.F., SANTOS A.A., SILVA C.B., 2020 b - Machine learning for seed quality classification: An advanced approach using merger data from FT-NIR spectroscopy and X-ray imaging. - Sensors, 20(15): 4319.
  12. DOMIC A.I., CAPRILES J.M., CAMILO G.R., 2020 - Evaluating the fitness effects of seed size and maternal tree size on Polylepis tomentella (Rosaceae) seed germination and seedling performance. - J. Trop. Ecol., 36(3): 115-122.
  13. DUC N.T., RAMLAL A., RAJENDRAN A., RAJU D., LAL S.K., KUMAR S., SAHOO R.N., CHINNUSAMY V. 2023 - Image-based phenotyping of seed architectural traits and prediction of seed weight using machine learning models in soybean. - Front. Plant Sci., 14: 1206357.
  14. ELMARSY G., MANDOUR N., AL-REJAIE S., BELIN E., ROUSSEAU D., 2019 - Recent applications of multispectral imaging in seed phenotyping and quality monitoring. An Overview. - Sensors, 19(5): 1090.
  15. ERYIGIT R., TUGRUL B., 2021 - Performance of various deep-learning networks in the seed classification problem. - Symmetry, 13(10): 1892.
  16. FAN Y., AN T., WANG Q., YANG G., HUANG W., WANG Z., ZHAO C., TIAN X., 2023 - Non-destructive detection of single-seed viability in maize using hyperspectral imaging technology and multi-scale 3D convolutional neural network. - Front. Plant Sci., 14: 1248598.
  17. FENNER M., 1992 - Environmental influences on seed size and composition. - Hortic. Rev., 13: 183-213.
  18. FRAAS S., NIEHOFF V., LUTHEN H., 2014 - A high-throughput imaging auxanometer for roots and hypocotyls of Arabidopsis using a 2D skeletonizing algorithm. - Physiol. Plant., 151: 112-118.
  19. GAGLIARDI B., MARCOS-FILHO J., 2011 - Relationship between germination and bell pepper seed structure assessed by the x-ray test. - Sci. Agric., 68(4): 411-416.
  20. GOMES-JUNIOR F., YAGUSHI J., BELNI U., CICERO S., FILHO M., 2012 - X-ray densitometry to assess internal seed morphology and quality. - Seed Sci. Technol., 40: 102-107.
  21. GUTTERMAN Y., 2000 - Maternal effects on seeds during development, pp. 59-84. - In: FENNER M. (ed.) Seeds. The ecology of regeneration in plant communities. Second edition. CABI Publishing, Wallingford UK, pp. 410.
  22. HALCRO K., MCNABB K., LOCKINGER A., SOCQUET-JUGLARD D., BETT K.E., NOBLE S.D., 2020 - The BELT and phenoSEED platforms: shape and colour phenotyping of seed samples. - Plant Methods, 16(1): 49.
  23. ISTA, 2020 - International rules for seed testing 2020. Validated seed health testing method. - ISTA, International Seed Testing Association, Bassersdorf, Switzerland.
  24. JEONG S.W., LYU J.I., JEONG H.W., BAEK J., MOON J., LEE Ch., CHOI M-G., KIM K-H., PARK Y-I., 2024 - SUnSeT: spectral unmixing of hyperspectral images for phenotyping soybean seed traits - Plant Cell Rep., 43: 164.
  25. MÁCOVÁ K., PRABHULLACHANDRAN U., ŠTEFKOVA M., SPYROGLOU I., PENCIK A., ENDLOVA L., NOVAK O., ROBERT H.S., 2022- Long-term high-temperature stress impacts on embryo and seed development in Brassica napus. - Front. Plant Sci., 13: 844292.
  26. NGUYEN T.T., SLAUGHTER D.C., MAX N., MALOOF J.N., SINHA N., 2015 - Structured light-based 3D reconstruction system for plants. - Sensors, 15: 18587-18612.
  27. REHMAN T.U., MAHMUD M.S., CHANG Y.K., JIN J., SHIN J., 2019 - Current and future applications of statistical machine learning algorithms for agricultural machine vision systems. - Comput. Electron. Agric., 156: 585-605.
  28. ROUSSEAU D., WIDIEZ T., TOMMASO S., ROSITI H., ADRIEN J., MAIRE E., OLIVIER C., PEYRIN F., ROGOWSKY P., 2015 - Fast virtual histology using X-ray in-line phase tomography: Application to the 3D anatomy of maize developing seeds. - Plant Methods, 11: 55.
  29. SAHA D., MANICKAVASAGAN A., 2021 - Machine learning techniques for analysis of hyperspectral images to determine quality of food products: a review. - Curr Res Food Sci., 4: 28-44.
  30. SAUTU A., BASKIN J.M., BASKIN C.C., CONDIT R., 2006 - Studies on the seed biology of 100 native species of trees in a seasonal moist tropical forest, Panama, Central America. - For. Ecol. Manag., 234: 245-263.
  31. SCHMIDT L., 2000 - Guide to handling of tropical and subtropical forest seed. - Danida Forest Seed Centre, pp. 1-31.
  32. TANABATA T., SHIBAYA T., HORI K., EBANA K., YANO M., 2012 - Smartgrain: High-throughput phenotyping software for measuring seed shape through image analysis. - Plant Physiol., 160(4): 1871-1880.
  33. TEIMOURI M., KHOSHNEVIS M., MATINZADEH M., 2014 - Breaking dormancy and increasing seed germination in Montpellier maple Acer monspessulanum and white beam Sorbus greaca by microbial treatment. - Iranian J. Forest., 4: 377-385.
  34. VAN GELDEREN D.M., DE JONG P.C., OTERDOOM H.J., 1994 - Maples of the World. Timber Press.
  35. WAKHOLI C., KANDAPAL L.M., LEE H., BAE H., PARK E., KIM M.S., MO C., LEE W.H.H., CHO B.K.K., 2018 - Rapid assessment of corn seed viability using short wave infrared line-scan hyperspectral imaging and chemometrics. - Sensors & Actuators, B: Chemica, 255: 498-507.
  36. WANG Z., HUANG W., TIAN X., LONG Y., LI L., FAN S., 2022 - Rapid and non-destructive classification of new and aged maize seeds using hyperspectral image and chemometric methods. - Front. Plant Sci., 13.
  37. WULFF R.D., 1995 - Environmental maternal effects on seed quality and germination, pp. 491-505. - In: KIGEL J., and G. GALILI (eds.) Seed development and germination. Marcel Dekker Inc., New York/Basel/Hong Kong.
  38. XU P., FU L., PAN Y., CHEN D., YANG S., YANG R., 2024 - Identification of maize seed vigor based on hyperspectral imaging and deep learning. - Bull. Natl. Res. Cent., 48: 84.
  39. ZHU F., PAUL P., HUSSAIN W., WALLMAN K., DHATT B.K., SANDHU J., WALIA H., 2021 - Seedextractor: An open-source GUI for seed image analysis. - Front. Plant Sci., 11: 581546.
